Outdoor RG6 With Messenger SATV satallite systems Coax Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: Outdoor RG6 With Messenger SATV satallite systems Coax Cable
Product Description:

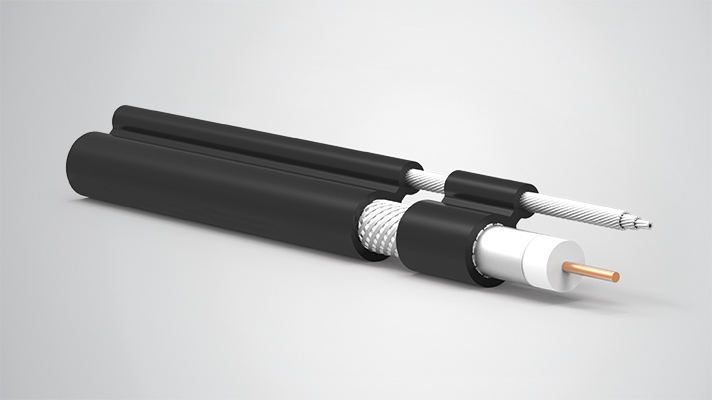

Outdoor RG6 With Messenger SATV satallite systems Coax Cable
These types of cables are used for outdoor and aerial distributions of CATV networks and connections of SMATV systems which require low attenuations.
Inner Conductor
Cu/CCS
Conductor Diameter
1 x 1,02 mm
Insulation
FPE
Insulation Diameter
4,57 mm
Screen Tape
AL
Braid
Braid with AL-MG Wires
Outer Sheath
PVC
Sheath Diameter
6,8 mm
Messenger
Steel Wire 1.13mm
| TECHNOLOGY DATA | |
|---|---|
| Characteristic Impedance | 75±3Ohm |
| Capacitance | 52±1pF/m |
| Velocity | >82% |
| Conductor & Dielectric To stick (kgt/m 1m/min) | 2.55kgf (10.2kgf/m) |
| Insulation resistance | 1000MΩ(20℃) |
| Frequence (at 20℃) | Max.Attenuation |
| 5MHz | 1.90dB/100m |
| 55MHz | 5.30dB/100m |
| 211MHz | 10.0dB/100m |
| 270MHz | 11.0dB/100m |
| 300MHz | 11.60dB/100m |
| 330MHz | 12.30dB/100m |
| 400MHz | 13.60dB/100m |
| 450MHz | 14.40dB/100m |
| 550MHz | 16.20dB/100m |
| 750MHz | 19.00dB/100m |
| 870MHz | 20.60dB/100m |
| 1000MHz | 21.49dB/100m |
