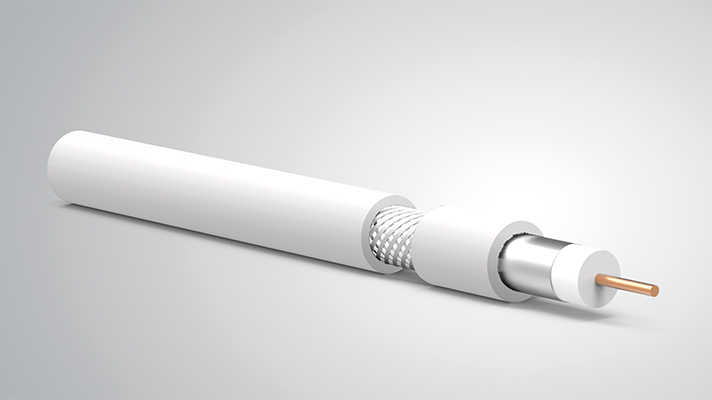

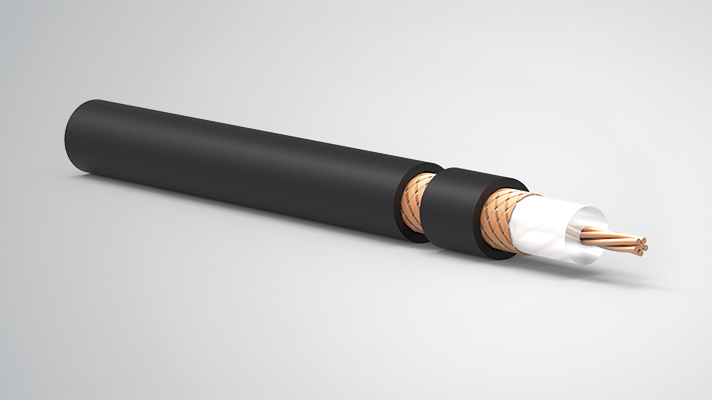

RG6 Trishield 75 Ohm CCTV Coaxial Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG6 Trishield 75 Ohm CCTV Coaxial Cable,RG6 Tri,RG6,coax cable
Product Description:
RG6U CCS 60% AL PVC 75 Ohm CCTV Coaxial Cable
Used in low attenuation requied systems such as indoor CATV, CCTV distribution and SATV satallite systems as connection cable.
Construction Parameters:
Inner Conductor
0.040"/1.02mm/18AWG CCS
Dielectric
0.180"/4.57mm Foamed PE
Shield 1
0.187"/4.75mm Bonded Aluminum Polyproylene
Shield 2
Aluminum braid wire 77% coverage
Shield 3
Laminated Aluminum Tape(Non-Bonded)
Jacket
0.278"±0.006"/7.06±0.15mm PVC-Recycle
Jacket Thickness
0.030"/0.76mm
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
The Max. at 20℃ shall be < 87 Ω/km
26.6Ω/1000ft
Capacitance
52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.85
Sparker Test (VAC)
4
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ℃ to 60℃
Cable diamensions
0.278"±0.006"/7.06±0.15mmPVC-Recycle
|
Attenuation(20℃): |
|||
|
Frequency (MHZ) |
Max Attenuation(dB/100ft) |
Max Attenuation (dB/100m) |
|
|
5 |
0.58 |
1.90 |
|
|
55 |
1.60 |
5.25 |
|
|
83 |
1.95 |
6.40 |
|
|
187 |
2.85 |
9.35 |
|
|
211 |
3.05 |
10.00 |
|
|
250 |
3.30 |
10.82 |
|
|
300 |
3.55 |
11.64 |
|
|
350 |
3.85 |
12.63 |
|
|
400 |
4.15 |
13.61 |
|
|
450 |
4.40 |
14.43 |
|
|
500 |
4.66 |
15.29 |
|
|
550 |
4.90 |
16.08 |
|
|
600 |
5.10 |
16.73 |
|
|
750 |
5.65 |
18.54 |
|
|
865 |
6.10 |
20.01 |
|
|
1000 |
6.55 |
21.49 |
|
