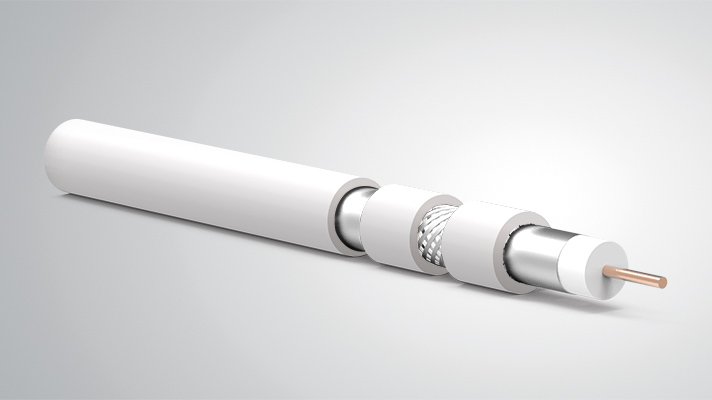

RG11 Trishield CATV Coaxial Cable

Construction Parameters:

Inner Conductor

0.064"/1.63mm/14AWG CCS

Dielectric

0.280"/7.11mm Foamed PE

Shield 1

0.287"/7.29mm Bonded Aluminum PET

Shield 2

Aluminum braid wire 60% coverage

Shield 3

Aluminum Laminated Tape(Non-bonded)

Jacket

0.400"±0.006"/10.16±0.15mm PE

Jacket Thickness

0.042"/1.07mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 38 Ω/km

< 11.59 Ω/1000ft

Capacitance

52 ±3 pF/m    15.85 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃ / -40 ℃ to 80℃

Cable diamensions

0.40''±0.006''/10.21±0.15 mm PE
