KX6 With Power CCTV coaxial Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: KX6 With Power CCTV coaxial Cable
Product Description:

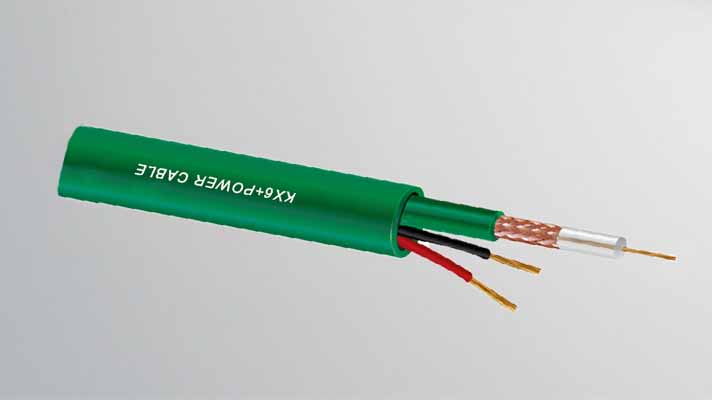

KX6+2×0.50 Copper 75 Ohm CCTV coaxial Cable
Kx6/Kx7 with power cable is apply for CATV-community antenna television,CCTV-closed-circuit television and DBS-direct broadcasting satellite .It has a characteristic impedance of 75 ohms, its Excellent transmission with fast speed.
|
Construction Parameters: |
||
|
Inner Conductor |
7×0.2mm Copper |
|
|
Dielectric |
3.66mm FPE |
|
|
Shield |
96/0.12mmCCA |
|
|
Jacket |
6.0mm PVC/PE/LSZH |
|
|
Power Wire Conductor |
2x(16*0.20mmCCA ) |
|
|
Power wire Diameter of insulation |
1.6mm PVC (Red,Black) |
|
|
Jacket |
4.4mm PVC/PE/LSZH |
|
|
Application |
For Use in Longer CCTV Run Lengths |
|
|
Electrical Characteristics: |
||
|
Inner Conductor Resistance |
87.5Ω/KM at 20℃ |
|
|
Capacitance |
67 ±3 pF/m |
|
|
Impedance |
75 ± 3 Ω |
|
|
Return loss |
between 5 and 1000MHz: > 22dB |
|
|
Velocity of Propagation |
0.85 |
|
|
Sparker Test (VAC) |
4 |
|
|
|
|
|
|
Mechanical and Envrionmental Properties |
||
|
Cable bend radius |
10 times the cable diameter |
|
|
Operating Temp Range |
-20 ℃ to 60℃ |
|
|
Cable diamensions |
6.0×4.4mm |
|
|
Attenuation(20℃): |
||
|
Frequency (MHZ) |
Max Attenuation(dB/100ft) |
Max Attenuation (dB/100m) |
|
10 |
|
5.00 |
|
50 |
|
8.10 |
|
100 |
|
13.00 |
|
200 |
|
18.50 |
|
400 |
|
22.50 |
|
850 |
|
34.50 |
|
950 |
|
37.50 |
|
1000 |
|
45.00 |
