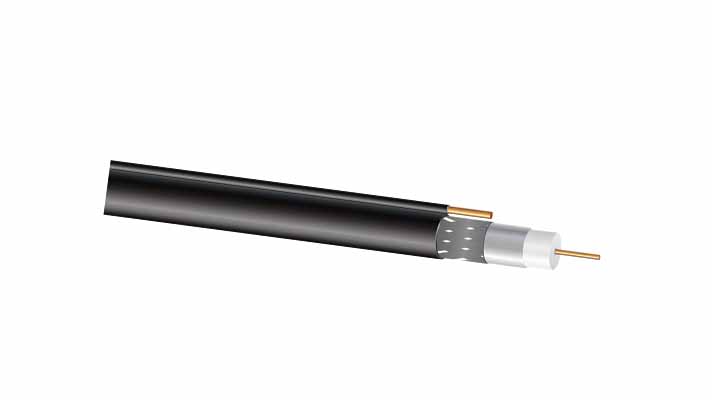

RG11BVM Drop Coaxial Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG11BVM Drop Coaxial Cable
Product Description:
RG11BVM Drop Coaxial Cable
These types of cables are used for outdoor and aerial distributions of CATV networks and connections of SMATV systems which require low attenuations.
| Inner Conductor | Cu、CCS |
| Conductor Diameter | 1 x 1,63 mm |
| Insulation | FPE |
| Insulation Diameter | 7,10 mm |
| Screen Tape | Al-Pes 100% |
| Braid | Braid with Aluminium Wires |
| Suspension Wire | 7 x 0.70 mm Galvanized Steel Wire |
| Outer Sheath | PE |
| Sheath Diameter | 10,10 x 15,50 mm |
| Colour of Sheath | Black |
| Capacitance | 53 pf/m |
| Impedance | 75±3 OHM |
| Velocity | 0,84 |
| Insulation Resistance | >2000 MOHM KM |
| Working Tempeture | -40°C + 70°C |
| Working Voltage | 2,0 kv |
| Test Voltage | 5,0 kv |
| Min.Bending Radius | 15 x D |
|
Attenuation(20℃): |
|||
|
Frequency (MHZ) |
Max Attenuation(dB/100ft) |
Max Attenuation (dB/100m) |
|
|
5 |
0.38 |
1.25 |
|
|
55 |
0.96 |
3.15 |
|
|
83 |
1.18 |
3.87 |
|
|
187 |
1.75 |
5.74 |
|
|
211 |
1.90 |
6.23 |
|
|
250 |
2.05 |
6.72 |
|
|
300 |
2.25 |
7.38 |
|
|
350 |
2.42 |
7.94 |
|
|
400 |
2.60 |
8.53 |
|
|
450 |
2.75 |
9.02 |
|
|
500 |
2.90 |
9.51 |
|
|
550 |
3.04 |
9.97 |
|
|
600 |
3.18 |
10.43 |
|
|
750 |
3.65 |
11.97 |
|
|
865 |
3.98 |
13.05 |
|
|
1000 |
4.35 |
14.27 |
|
