CAT5E UTP 24AWG Data Lan Cable
- Brand: FUU/OEM
- MOQ:100Box
- Impedance:100Ohm
- Packing: 305m/Pull Box
- Product description: CAT5E UTP 24AWG Data Lan Cable
Product Description:

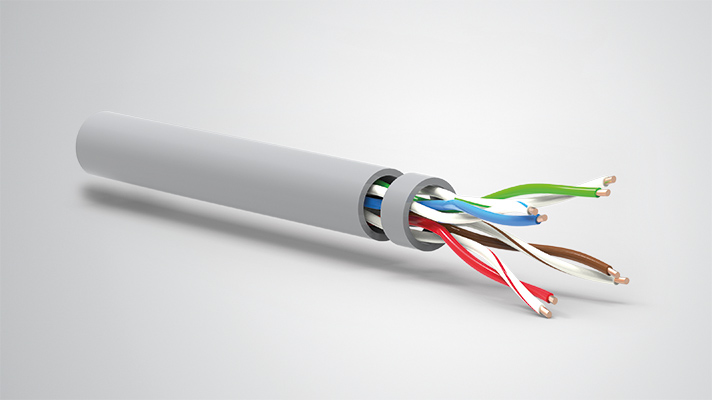

CAT5E UTP 24AWG Data Lan Cable
These cables used in data transmission systems that work up to 155 Mbit/s. These cables are particularly preferred in the offices, buildings where many terminals are found. The outer sheath material of CAT 5e UTP cable is PVC for indoor application; black PE is for outdoor application and HFFR is free flame retardant compound which has low smoke density and no toxic/corrosive gases during a fire.
|
Construction |
|
|
Conductor: |
0.5mm Solid Bare Copper |
|
Pairs: |
4 Pairs |
|
Insulation: |
0.82 mm HDPE |
|
Insulation Colors: |
Blue-White/Blue,Orange-White/Orange |
|
Green-White/Green,Brown-White/Brown |
|
|
Rip Cord: |
Cotton |
|
Out Jacket: |
4.7±0.2 mm PVC |
|
|
|
|
Electrical Characteristics |
|
|
Impedance |
1 - 100MHz 100±15 Ohms |
|
Insulation Resistance |
＞5000MΩ*KM |
|
Dielectric strength |
DC 2500V 2S |
|
Max.Conductor DC |
12 Ohms/100m |
|
Res. unbalance (%) |
Max. 2.5 |
|
Pair to Ground |
330 pF/100m |
|
Transfer Impendance |
Max 10 mOhms/m @100Mhz |
|
Installation temp. |
-30 - 50℃ |
|
Operation temp. |
-20 - 75℃ |
