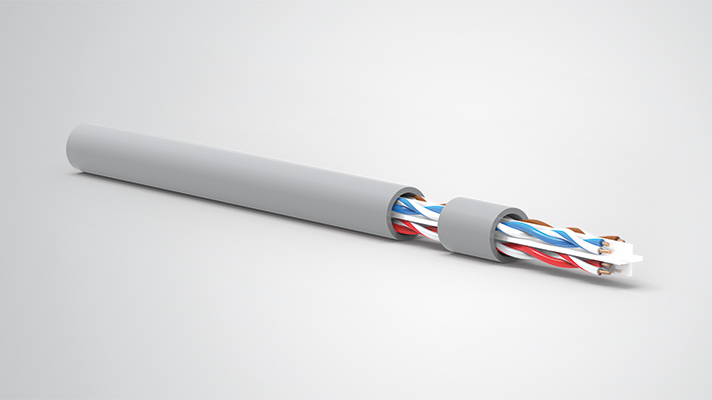

CAT6 UTP 23AWG Data Lan Cable

Brand: FUU/OEM
MOQ:100Box
Impedance:100Ohm
Packing: 305m/Pull Box
Product description: CAT6 UTP 23AWG Data Lan Cable
INQUIRY EMAIL

Product Description:

CAT6 UTP 23AWG Data Lan Cable

These cables used in data transmission systems that work up to 200 Mbit/s. These cables are particularly preferred in the offices, buildings where many terminals are found. The outer sheath material of CAT6 UTP cable is PVC for indoor application; black PE is for outdoor application and HFFR is free flame retardant compound which has low smoke density and no toxic/corrosive gases during a fire.

Construction
Conductor:			23 AWG Solid Bare Copper
Pairs:			4 Pairs
Insulation:			1.02 mm HDPE
Insulation Colors:			Blue-White/Blue,Orange-White/Orange
			Green-White/Green,Brown-White/Brown
Filler:			Cross Filler
Rip Cord:			Cotton
Out Jacket:			6.4±0.2 mm PVC CM
Electrical Characteristics
Impedance			1 - 250MHz 100±15 Ohms
Insulation Resistance			＞5000MΩ*KM
Dielectric strength			DC 2500V 2S
Max.Conductor DC Resistance 20℃			8.4 Ohms/100m

Res. unbalance (%)			Max. 2.5
Pair to Ground Capacitance Unbalance			330 pF/100m

Transfer Impendance			Max 10 mOhms/m @100Mhz
Installation temp.			-30 - 50℃
Operation temp.			-20 - 75℃
