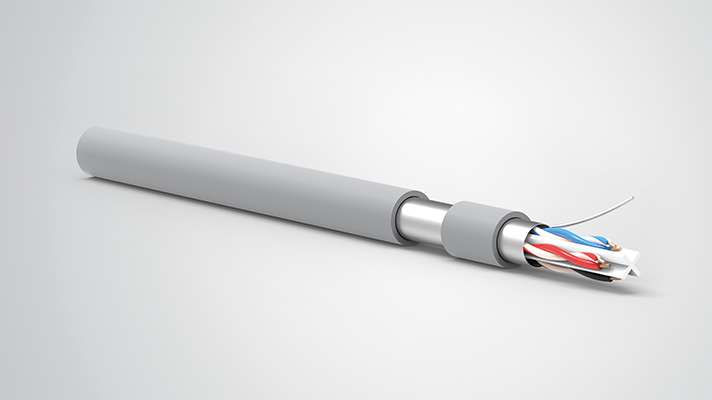

CAT6 FTP 23AWG Data Lan Cable
- Brand: FUU/OEM
- MOQ:100Box
- Impedance:100Ohm
- Packing: 305m/Pull Box
- Product description: CAT6 FTP 23AWG Data Lan Cable
Product Description:
CAT6 FTP 23AWG Data Lan Cable
These cables used in data transmission systems that work up to 200 Mbit/s. These cables are particularly preferred in the offices, buildings where many terminals are found. The outer sheath material of CAT6 FTP cable is PVC for indoor application; black PE is for outdoor application and HFFR is free flame retardant compound which has low smoke density and no toxic/corrosive gases during a fire.
|
Construction |
||||||||
|
Conductor: |
23 AWG Solid Bare Copper |
|||||||
|
Pairs: |
4 Pairs |
|||||||
|
Insulation: |
1.35 mm Skin-Foam-Skin |
|||||||
|
Insulation Colors: |
Blue-White/Blue,Orange-White/Orange |
|||||||
|
Green-White/Green,Brown-White/Brown |
||||||||
|
Overall Shield |
Individual Pair shield,Al/PET Foil,Foil face out |
|||||||
|
Drain Wire |
0.40±0.005mm TC |
|||||||
|
Rip Cord: |
Cotton |
|||||||
|
Out Jacket: |
8.0±0.2 mm PE |
|||||||
|
|
||||||||
|
Electrical Characteristics |
||||||||
|
Impedance |
4 - 100MHz 100±15 Ohms |
|||||||
|
100 - 200MHz 100±22 Ohms |
||||||||
|
200 - 500MHz 100±32 Ohms |
||||||||
|
Max.Conductor DC |
8.7 Ohms/100m |
|||||||
|
Res. unbalance (%) |
Max. 2.5 |
|||||||
|
Pair to Ground |
330 pF/100m |
|||||||
|
Transfer Impendance |
Max 10 mOhms/m @100Mhz |
|||||||
|
Installation temp. |
-30 - 50℃ |
|||||||
|
Operation temp. |
-20 - 75℃ |
|||||||
|
Standard |
||||||||
|
IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801 |
||||||||
|
|
||||||||
|
Performance Characteristics |
||||||||
|
Frequency |
RL (Min.) |
Insertion Loss(Max.) |
Propagation Delay (Max.) |
Delay Skew(Max.) |
NEXT (Min.) |
PSNEXT (Min.) |
ELNEXT (Min.) |
PSELNEXT (Min.) |
|
MHz |
dB |
dB/100m |
ns/100m |
ns/100m |
dB |
dB |
dB/100m |
dB/100m |
|
1 |
20.0 |
2.1 |
570.0 |
45.0 |
74.3 |
72.3 |
67.8 |
64.8 |
|
4 |
23.0 |
3.8 |
552.0 |
45.0 |
65.3 |
63.3 |
55.8 |
52.8 |
|
10 |
25.0 |
6.0 |
545.0 |
45.0 |
59.3 |
57.3 |
47.8 |
44.7 |
|
16 |
25.0 |
7.6 |
543.0 |
45.0 |
56.2 |
54.2 |
43.7 |
40.7 |
|
20 |
25.0 |
8.5 |
542.0 |
45.0 |
54.8 |
52.8 |
41.8 |
38.8 |
|
31.25 |
25.0 |
10.7 |
540.0 |
45.0 |
51.9 |
49.9 |
37.9 |
34.9 |
|
62.5 |
21.5 |
15.4 |
539.0 |
45.0 |
47.4 |
45.4 |
31.9 |
28.9 |
|
100 |
20.1 |
19.8 |
538.0 |
45.0 |
44.3 |
42.3 |
27.8 |
24.8 |
|
200 |
18.0 |
29.0 |
537.0 |
45.0 |
39.8 |
37.8 |
21.8 |
18.8 |
|
300 |
17.3 |
36.4 |
536.0 |
45.0 |
37.1 |
35.1 |
18.3 |
15.3 |
|
400 |
17.3 |
43.0 |
536.0 |
45.0 |
35.3 |
33.3 |
15.8 |
12.8 |
|
500 |
17.3 |
45.3 |
536.0 |
45.0 |
33.8 |
31.8 |
13.8 |
10.8 |
|
Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. |
||||||||
