19 VATC CATV Coaxial Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: 19 VATC CATV Coaxial Cable,19vatc,coaxial cable,coax cable
Product Description:

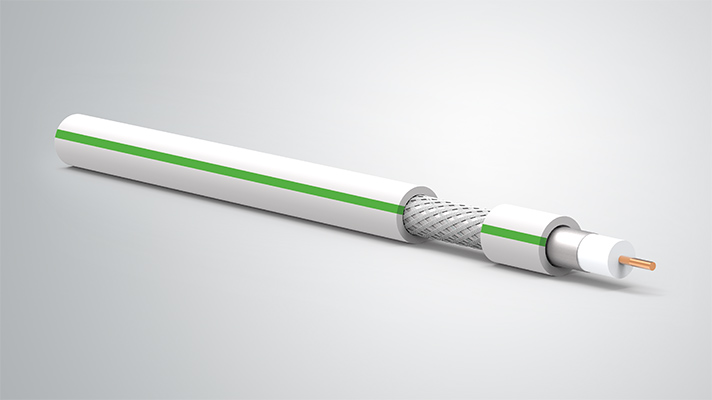

19 VATC CATV Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 1.02mm BC/Copper-Clad Steel | |
| Dielectric | 4.6mm Foamed PE(Gas Expanded Polyethylene) | |
| Shield 1 | 4.75mm Bonded Aluminum Polyproylene | |
| Shield 2 | Aluminum braid wire 55% coverage | |
| Jacket | 6.81±0.15mm PVC (Color can be chosed by Customer) | |
| Jacket Thickness | 0.030"/0.76mm | |
| Application | For Use in Longer CATV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be < -/km | |
| Capacitance | 52 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 70℃ | |
| Cable diamensions | 6.81±0.15mm PVC | |
