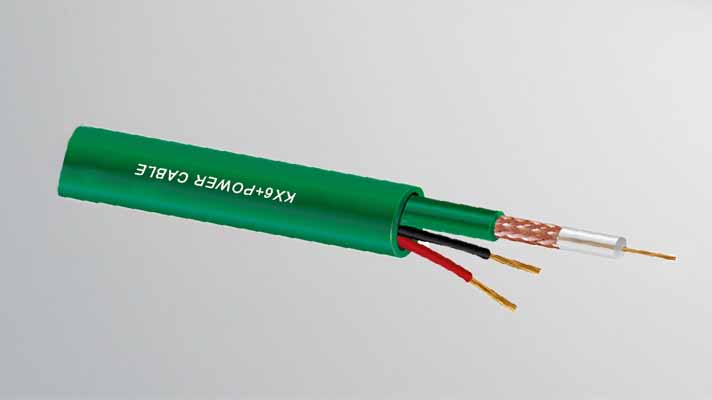

KX6+2×0.50 Copper 75 Ohm CCTV coaxial Cable

Construction Parameters:

Inner Conductor

7×0.2mm Copper

Dielectric

3.66mm FPE

Shield

96/0.12mmCCA

Jacket

6.0mm PVC/PE/LSZH

Power Wire Conductor

2x(16*0.20mmCCA )

Power wire Diameter of insulation

1.6mm PVC (Red,Black)

Jacket

4.4mm PVC/PE/LSZH

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

87.5Ω/KM at 20℃

Capacitance

67 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.0×4.4mm

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

10

5.00

50

8.10

100

13.00

200

18.50

400

22.50

850

34.50

950

37.50

1000

45.00
