Inquiry:
High performance Cat 6A cable
- Brand: FUU/OEM
- MOQ:100Box
- Impedance:100Ohm
- Packing: 305m/Pull Box
- Product description: High performance Cat 6A cable
Product Description:

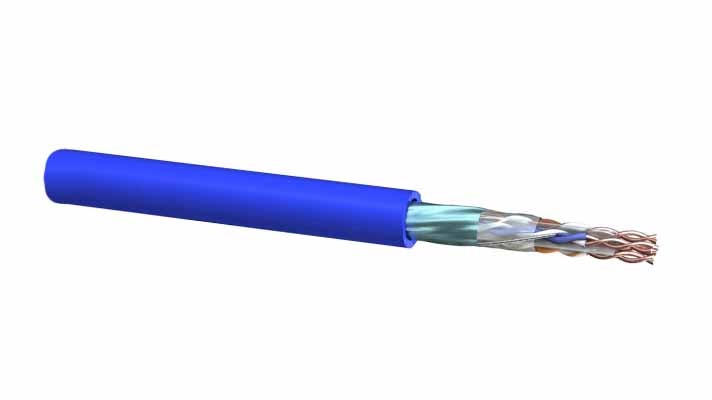

High performance Cat 6A cable
High performance Cat 6A cable available in blue. Cat 6A is stocked in 100m, 200m and 500m reels as well as cut-to-length.
The Cat 6A cable has been tested and approved by the HDBaseT Alliance making it the ideal choice for high speed data networks across a home or building. The HDBaseT standard allows distribution of HD video, 2K and 4K uncompressed video, audio, 100BaseT Ethernet, power and control across a single Cat 6A cable.
|
Conductor: |
23 AWG Solid Bare Copper |
|||||||
|
Pairs: |
4 Pairs |
|||||||
|
Insulation: |
High Density Polyethylene(HDPE) |
|||||||
|
Insulation Colors: |
Blue-White/Blue,Orange-White/Orange |
|||||||
|
Green-White/Green,Brown-White/Brown |
||||||||
|
Overall Shield |
Individual Pair shield,Al/PET Foil,Foil face out |
|||||||
|
Drain Wire |
24AWG Tinned Copper |
|||||||
|
Overall Screen: |
Aluminium/ |
|||||||
|
Out Jacket: |
8.0±0.2 mm PE |
|||||||
