Inquiry:

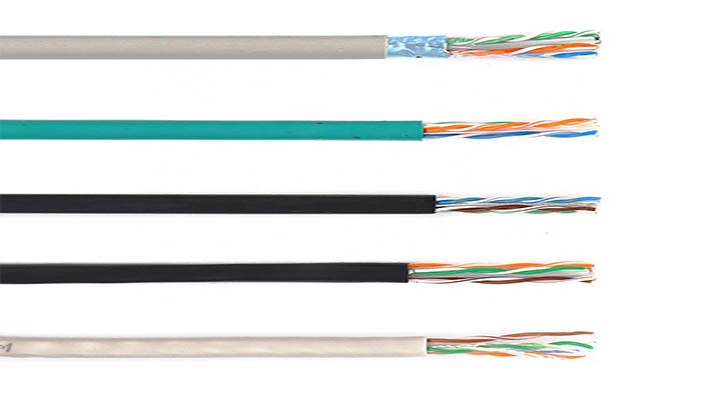

Cat 5E F/UTP PVC Cable
- Conductor:Copper/CCA
- MOQ:100Box
- For data transmission
- Packing: 305m/Pull Box
- Product description: Cat 5E F/UTP PVC Cable,ethernet cable,Category 5 (CAT 5E), Category 6 (CAT 6 and CAT 6A) ,Category 7 (CAT 7) cables
Product Description:
APPLICATION
A 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
CHARACTERISTICS
Temperature Rating
Fixed: -20°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 8 x overall diameter
CONSTRUCTION
Conductor Class 1 solid copper conductor
Insulation HDPE (High Density Polyethylene)
Drain Wire Tinned copper Screen
Aluminium foil Sheath
PVC (Polyvinyl Chloride)
Core Identification
Pair 1: Blue White/Blue
Pair 2: Orange White/Orange
Pair 3: Green White/Green
Pair 4: Brown White/Brown
Sheath Colour
Grey
